MultiplayerManager Class

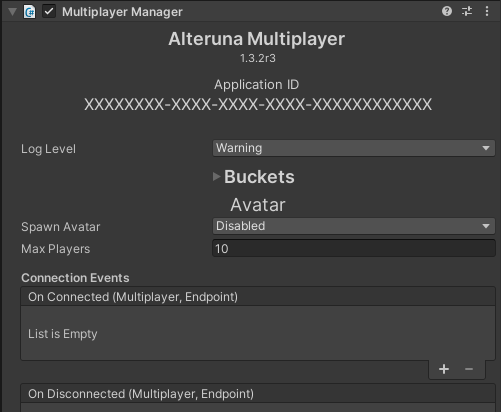

The component MultiplayerManager gives access to all functionality and communication for Alteruna Multiplayer.

Definition

Namespace: Alteruna.Multiplayer
Assembly: Alteruna (in Alteruna.dll) Version: 2.0.1+a1176e08a0b4a6bfd8fefeddde6163a16d29e5ab
C#
public class MultiplayerManager : MonoBehaviour,
	IAdaptiveSerializableUniqueID, IAdaptiveSerializable, IUniqueID
Inheritance
Object    Object    Component    Behaviour    MonoBehaviour    MultiplayerManager
Derived
Implements
IAdaptiveSerializable, IAdaptiveSerializableUniqueID, IUniqueID

Remarks

When a reference for MultiplayerManager is needed, it is recommended to inherit from CommunicationBridge or one of its many inheritors, such as AttributesSync. Other methods, such as using MultiplayerManager.Instance or creating a serialized property in the scene will not work with the MultiClientSimulation tool.

Example

Accessing users

An example of how you can use MultiplayerManager to access all user ids in the current room.
C#
public class MyClass : CommunicationBridge
{
    public ushort[] GetUserIDs()
    {
        return
            // Get all users in the current room
            Multiplayer.GetUsers()
            // Select user Index
            .Select(u => u.Index)
            // return as an array
            .ToArray();
    }
}

Creating custom rooms

An example of how you can create a room using CreatePrivateRoom(String, UInt16, Boolean, Boolean) and RoomArgs.
C#
public class MyClass : CommunicationBridge
{
       private readonly RoomArgs _roomSettings = new RoomArgs
       {
           // At most four players can be in this room at once.
           MaxUsers = 4,
           // The user joins the room upon creation.
           JoinRoom = true,
       };

       public void CreatePrivateRoom()
       {
           Multiplayer.CreatePrivateRoom(_roomSettings);
       }
}

Constructors

Properties

ApplicationData
AvailableRooms A list of all the currently available Rooms on the server.
CurrentRoom The Room we are currently connected to.
InRoom Whether currently connected to a Room.
Instance Static singleton instance of the Multiplayer component. Note that this feature may not work as intended when used in combination with the multi-client tool.
IsAuthenticated
IsConnected Whether currently connected to a server.
IsConnecting Whether currently connecting to a server.
IsHost
Latency Connection latency. When no connection is established, last connection will be returned.
LowestUserIndex The index of the user with the lowest index. Updates after the other joined and room joined events.
MaxPlayers The global maximum amount of players allowed in a single Room. Rooms can be created with a lower player limit, but not higher.
Me The User representing the local player.
NetworkStatistics Statistic on network data send and received in Kilobytes unless defined.
Started True when the manager is ready to connect.
State
UID
UIDString Get the unique identifier of the Alteruna Multiplayer instance as a string.

Methods

Connect Connect to the Alteruna service manually when the config ConnectOnStart is disabled.
CreatePrivateRoom(RoomArgs) Create a new private room.
CreatePrivateRoom(String, UInt16, Boolean, Boolean) Create a new private room.
Obsolete.
CreateRoom Create room.
CreateRoom(RoomArgs) Create room.
CreateRoom(String, Boolean, UInt16, Boolean, Boolean, UInt16) Create a new room.
Obsolete.
DeregisterCodec Deregister a Synchronizable from Alteruna Multiplayer, so that it is no longer being synchronized.
DirectConnect(String) Connect using ip. If no port is specified, it will use the default port.
DirectConnect(String, UInt16) Connect using ip and port.
Disconnect Disconnect from the Alteruna Multiplayer service and reset the local state.
GetAllSynchronizables Get a list of all currently registered Synchronizables.
GetAllSynchronizables(ListSynchronizableElement) Get a list of all currently registered Synchronizables.
GetAvatar Get locally spawned Avatar.
GetAvatar(String) Get Avatar by name.
GetAvatar(UInt16) Get Avatar by index.
GetAvatars Get all Users from current room.
GetComponentById(Guid) Get a Unity Component through its UID.
GetComponentById(IUniqueID) Get a Unity Component through its UID.
GetDebuggingInfo Get debugging info. Includes settings, device info, etc.
GetGameObjectById(Guid) Get a Unity GameObject through its UID.
GetGameObjectById(IUniqueID) Get a Unity GameObject through its UniqueID.
GetLastBlockResponse Get reason for connection block.
GetObjectByIdT(Guid) Get an object inheriting from IAdaptiveSerializableUniqueID through its UID.
GetObjectByIdT(IUniqueID) Get an object inheriting from IAdaptiveSerializableUniqueID through its UID.
GetSynchronizable(Guid) Get a Synchronizable through its UniqueID.
GetSynchronizable(IUniqueID) Get a Synchronizable through its UniqueID.
GetUser Get your own User.
GetUser(Int32) Get User by index.
GetUser(String) Get User by name.
GetUser(UInt16) Get User by index.
GetUsers Get all Users from current room.
Host Host a local server.
InvokeRemoteProcedure(String, UserId, ProcedureParameters, ISerializable, Reliability, RemoteProcedureReply, RemoteProcedureAck) Invoke a Remote Procedure Call (RPC).
InvokeRemoteProcedure(String, UInt16, ProcedureParameters, ISerializable, Reliability, RemoteProcedureReply, RemoteProcedureAck) Invoke a Remote Procedure Call (RPC).
IsRegistered(Guid) Check is specified UID registered.
IsRegistered(IUniqueID) Check is specified the UniqueID registered.
JoinFirstAvailable Join any available room. Only join rooms that is not full, does not have pin code, and is not invite only.
JoinLan Join a LAN server.
JoinLan(UInt16) Join a LAN server on a specific port.
JoinMatchmaking Join a Room through matchmaking.
JoinMatchmaking(UInt16) Join a Room through matchmaking using a pin.
JoinOnDemandRoom Create and Join a Room. The Room will close when the last player leaves the room. Use CreateRoom for more control.
Obsolete.
JoinOnDemandRoom(UInt32) Join Room by id. The Room will close when the last player leaves the room.
JoinRoom(Room) Join an available Room.
JoinRoom(Room, UInt16) Join an available Room using a pin.
JoinWithInviteCode Join a room using the invite code.
LoadScene(Int32, Boolean) Load a scene by index and move Multiplayer object and all Avatars to the new scene.
LoadScene(String, Boolean) Load a scene by name and move Multiplayer object and all Avatars to the new scene.
LockRoom Lock current room.
MakeUID
MulticastRemoteProcedure Invoke a Remote Procedure Call (RPC) for multiple Users.
RefreshRoomList Refresh the AvailableRooms list containing the currently available Rooms on the server.
RegisterRemoteProcedure Register a Remote Procedure.
RegisterSynchronizable Register a Synchronizable to be synchronized through Alteruna Multiplayer.
ReplyRemoteProcedure Reply to a Remote Procedure Called by another User.
SendToBucket(Guid, Int32) Synchronize a specific UID to all Users within a specific bucket.
SendToBucket(CommunicationBridgeUID, Int32, Reliability) Synchronize a specific CommunicationBridgeUID to all Users within a specific bucket.
SendToBucket(IAdaptiveSerializableUniqueID, Int32, Reliability) Synchronize a specific object implementing IAdaptiveSerializableUniqueID to all Users within a specific bucket.
SendToBucket(IUniqueID, Int32, Reliability) Synchronize a specific object implementing IUniqueID to all Users within a specific bucket.
Serialize
SetRoomName Rename currently joined room.
SetUsername Sets new username for non-connected user.
SoftReset Reset some internal fields regrading connection to their default values.
SpawnAvatar Spawn your avatar.
SpawnAvatar(Transform) Spawn Avatar at the position and oration of a transform.
SpawnAvatar(Vector3, Quaternion) Spawn Avatar using position and rotation.
SpawnAvatar(Vector3, Vector3) Spawn Avatar using position and rotation.
StartRemoteServer
Sync(CommunicationBridgeUID, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
Sync(Guid, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
Sync(IAdaptiveSerializableUniqueID, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
Sync(IUniqueID, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
Sync(CommunicationBridgeUID, ListUInt16, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
Sync(Guid, ListUInt16, Reliability) Synchronize a specific Synchronizable through Alteruna Multiplayer.
TryGetSynchronizable(Guid, IAdaptiveSerializable) Get a Synchronizable through its UniqueID.
TryGetSynchronizable(IUniqueID, IAdaptiveSerializable) Get a Synchronizable through its UniqueID.
UnlockRoom Unlock current room.
Unserialize

Fields

AvatarPrefab The prefab to spawn as an Avatar if SpawnAvatarOnJoin is true.
AvatarSpawning Avatar spawning behavior.
AvatarSpawnLocation The location at which to spawn Avatars.
AvatarSpawnLocations An indexed list of the locations at which to spawn Avatars.
Buckets A list containing all the existing Buckets in the application.
ConnectOnStart Determines whether the multiplayer session will attempt to establish a connection automatically when the application starts.
LogLevel The lowest level of logs to print to the console.
OnConnected Event invoked after successfully connecting to a server.
OnDisconnected Event invoked after disconnecting from a server.
OnForceSync Called before data is synced for a force sync packet.
OnForceSynced On client request a force sync package.
OnForceSyncReply Invoked when received force sync data from other player.
OnJoinRejected Event invoked on join event rejected with a rejection reason.
OnLockAcquired Event invoked when successfully receives ownership for any object.
OnLockDenied Event invoked when an attempt to gain ownership over an object is denied.
OnLockRequested Event invoked on ownership requests.
OnLockUnlocked Event invoked when an object releases its ownership.
OnNetworkError Event invoked if any network related errors occur.
OnOtherUserJoined Event invoked when other User joined the Room. When joining a room, this event will be invoked for every User already in the Room.
OnOtherUserLeft Event invoked after another User left the Room.
OnPacketReceived Receive packet event.
OnPacketSent Send packet event.
OnRoomCreated Event invoked after successfully joining a Room.
OnRoomJoined Event invoked after successfully joining a Room.
OnRoomLeft Event invoked on successfully leaving a room.
OnRoomListUpdated Event invoked when the AvailableRooms list is modified.
OnRpcReceived On remote procedure call received. Multiplayer, name, sender
OnRpcRegistered On remote procedure call registered.
OnRpcSent On remote procedure call sent. Multiplayer, name, target, isMulticast
OnStarted Event invoked after Alteruna services started.
SpawnAvatarPerIndex Weather Avatars should be spawned in different locations based on their index in the Room.
