Spawner Class

Spawner can instantiate and destroy objects on all clients in the Room simultaneously.

Definition

Namespace: Alteruna.Multiplayer
Assembly: Alteruna (in Alteruna.dll) Version: 2.0.1+a1176e08a0b4a6bfd8fefeddde6163a16d29e5ab
C#
public class Spawner : CommunicationBridge
Inheritance
Object    Object    Component    Behaviour    MonoBehaviour    CommunicationBridge    Spawner

Remarks

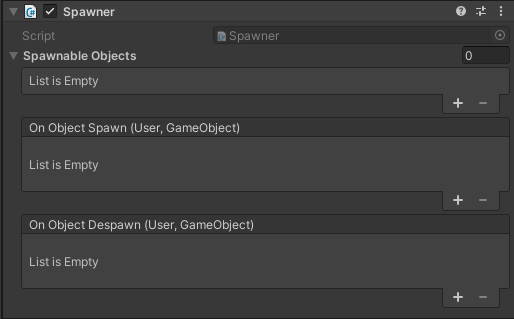

The image shows an example of how the Spawner component looks in the inspector.

Example

Here's an example of using the Spawner to spawn cubes and spheres using different positions and rotations. It also showcases how to despawn game objects.
C#
public class MySpawner : MonoBehaviour
{
    public Spawner spawner;

    public GameObject cubePrefab;
    private int _cubeIndex;

    public GameObject spherePrefab;
    private int _sphereIndex;

    // Since we will create three cubes that we want at different positions and rotations, we create
    // variables that hold that data.
    private readonly Vector3[] _cubeSpawnPositions =
    {
        new Vector3(0, 0, 0),
        new Vector3(1, 0, 1),
        new Vector3(-1, 0, 1),
    };

    private readonly Vector3[] _cubeSpawnRotations =
    {
        new Vector3(0, 0, 0),
        new Vector3(0, 45, 45),
        new Vector3(0, 20, 50),
    };

    private GameObject _spawnedSphere;

    private void Start()
    {
        // We add the prefabs to the SpawnableObjects list.
        spawner.SpawnableObjects.Add(cubePrefab);

        // We also set the index, based on the order we put the prefabs in the list.
        _cubeIndex = 0;

        spawner.SpawnableObjects.Add(spherePrefab);
        _sphereIndex = 1;
    }

    public void SpawnSphereOnAllClients()
    {
        // We spawn the sphere prefab using its index in the SpawnableObjects array.
        // Additionally, we store the spawned sphere so we can despawn it later.
        _spawnedSphere = spawner.Spawn(_sphereIndex);

        // Alternatively, we can spawn the prefab using its name.
        // spawner.Spawn("Sphere");
    }

    public void SpawnCubesOnAllClients()
    {
        for(int i = 0; i < 3; i++)
        {
            // We spawn the cubes using different positions and rotations.
            spawner.Spawn(_cubeIndex, _cubeSpawnPositions[i], _cubeSpawnRotations[i]);
        }
    }

    public void DespawnSphereOnAllClients()
    {
        // We despawn the previously spawned sphere on all clients.
        spawner.Despawn(_spawnedSphere);
    }
}

Constructors

Properties

SpawnedObjects List of all currently spawned GameObjects in the Room.

Methods

Despawn Invoked when a GameObject has been despawned by a User in the Room.
Spawn(Int32) Spawn an new game object from index for all Users in the Room.
Spawn(String) Spawn a new object from name for all Users in the Room.
Spawn(Int32, Vector3) Spawn an new game object from index for all Users in the Room with position.
Spawn(String, Vector3) Spawn a new object from name for all Users in the Room with position.
Spawn(Int32, Vector3, Quaternion) Spawn a new game object from index for all Users in the Room using position and eular angles rotation.
Spawn(Int32, Vector3, Vector3) Spawn an new game object from index for all Users in the Room using position and rotation.
Spawn(String, Vector3, Quaternion) Spawn a new object from name for all Users in the Room using position and rotation.
Spawn(String, Vector3, Vector3) Spawn a new object from name for all Users in the Room using position and euler angles rotation.
Spawn(Int32, Vector3, Quaternion, Vector3) Spawn an new object for all Users in the Room using position, rotation, and scale.
Spawn(Int32, Vector3, Vector3, Vector3) Spawn an new game object from index for all Users in the Room using position, rotation, and scale.
Spawn(String, Vector3, Quaternion, Vector3) Spawn a new object from name for all Users in the Room using position, rotation, and scale.
Spawn(String, Vector3, Vector3, Vector3) Spawn an new object from name for all Users in the Room using position, euler angles rotation, and scale.
Start

Fields

ForceSync When true, spawn previously spawned objects on joining client(s).
OnObjectDespawn Invoked before GameObject gets despawned by a User in the Room.
OnObjectSpawn Invoked after GameObject has been spawned by a User in the Room.
SpawnableObjects List of GameObjects which can be spawned during the game.

See Also
